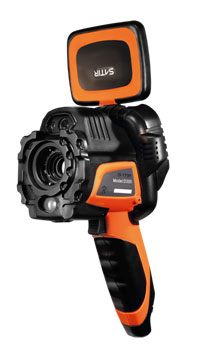

SATIR D300 – SATIR Most Innovative Thermal Imaging Camera
The SATIR D300 is the result of a large investment in our Research & Development Departments and therefore it is known as SATIR most innovative Thermal Imaging Camera yet for Mid-Level Thermography.
The SATIR D300 has some interesting design features such as fully reversible 3.5-inch display. It is suitable for users who are right or left handed, making the design ergonomic and accessible to all.
The SATIR D300 has a 384×288 IR detector which generates 110592 pixels, this gives the user a clear, crisp image and with high speed processing slows a quick image out without compromising quality.
The SATIR D300 Mid-Level Thermography camera has four imaging modes which are Infrared (IR), Digital (CCD) and Duo Vision Plus which is a new technology developed by SATIR. The Duo Vision Plus allows users to overlay CCD and IR images giving the user a detailed and clear image.
The SATIR D300 has a touch screen that will auto focus to ensure the user has a clearly focused thermal image. This means when generating a report the image is already focused which enables accurate evaluation.
The SATIR D300 mid-level thermal camera comes with a laser range finder which allows the user to point the laser at the target to learn the distance between the camera and the target.
The SATIR D300 has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 24° Standard lens, 7° 4x, 12°2x.
When buying the SATIR D300 you will receive a battery charger, batteries, SD card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
- Newly Designed Platform
- 384x288 IR Detector
- IR/Digital/Duo Vision/Duo Vision Plus
- Laser Range Finder
- Motorised Lens
- 5 MP High Definition Camera
- Long Battery Life
Camera Name
- Detector Resolution
- FOV
- Thermal Sensitivity (N.E.T.D)
- Emissivity
- Spectral range
- Focus Mechanism
- Spatial Resolution
D300
384x288
24°x17°
≤0.04°C@30°C
the built-in material list
7.5~14μm
Motorised
1.09 mrad
Adjustable from 0.01~1, and can be selected from
the built-in material list
Measurement
- Temperature Range
- Accuracy
D300
-20°C ~ + 600°C (up to 1500°C optional)
±2°C or ± 2% of readings
Image Presentation
- Visible Pixels
- LCD Display
- Video Output
- Image Output Mode
- Image Frequency
- File Format (Thermal/Visual)
- Image Mode
D300
5 MP Digital Camera
3.5” Capacitive Touch Screen
NTSC (60Hz) or PAL (50Hz) composite video
Analogue Video Output
≧30Hz
JPEG
IR/Digital/Duo-Vision/Duo-Vision Plus
Environmental
- Encapsulation
- Shock/Vibration Resistance
- Operating Temperature
D300
IP54
25G/2G
-20°C ~ +50°C
D300
0.85kg
232mm×115mm×168mm
Additional Features
- Ports
- Video Record
- Alarm
- Languages
- Real time transmission
- Bluetooth
D300
USB Type C
Yes
Audible alarm, colour alarm
English, Simplified Chinese, Traditional Chinese,
Spanish,German, French, Korean, Japanese
(optional)
Yes (Optional) USB real time transmission with temperature data
