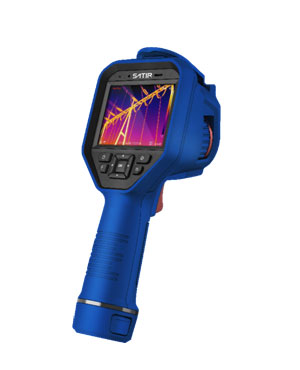

The i-series is SATIR newest range of handheld thermal cameras which come with a Android App,
meaning a second person nearby can see what is being surveyed by the person operating the
thermal camera. This can be useful if the area being scanned is a small space such as ceiling panels
or areas which are restricted to one person. The i-series cameras have a fixed screen
which replaces our regular flip screen design of cameras, offering the end user a different type of
camera display. Currently two models available i-160 & i-384 (Resolution 160x120 & 384x288
respectively). There are 4 imaging modes on both models and 7 colour palettes allowing the enduser to select the modes most suitable to their surveys.
The temperature measurement range is -
20°C ~ + 550°C with accuracy of ±2°C or ± 2% of readings. It comes with a rechargeable battery that
can be charged using a USB-C which allows for fast charging. The i-series is a very versatile range of
handheld thermal cameras that be used in a wide range of applications from mechanical to electrical
& power surveying.
- 160x120/384x288 IR Detector
- Android App
- New Fixed Screen Design
- 3.5” Touch Screen
- Laser Pointer
- Wi-Fi Connectivity
- Straight forward operation from the box
Thermal Camera
- Detector Type
- Detector Resolution
- FOV
- Thermal Sensitivity (N.E.T.D)
- Spectral Range
- Focal Length
- Focus Type
- Colour Palette
i-160
UFPA
160x120
25°x19°
50mK@25°C,F#=1.0)
8~14μm
6.7mm
Manual
7 Colour Palettes includes: Iron red & Rainbow
i-384
384x288
37.5°x28.5°
9.7mm
Measurement
- Temperature Range
- Accuracy
i-160
-20°C ~ + 550°C
±2°C or ± 2% of readings
Image Presentation
- LCD Display
- Digital Zoom
- Frame Rate
- Image Mode
i-160
3.5” LCD Capacitive Touch Screen
1x,2x,4x
25Hz
IR/CCD/Fusion/PiP
System Function
- Laser Pointer
- Storage
- Extra Functionality
i-160
Yes
16GB
25Hz
Physical Characteristics
- Weight
- Dimensions
- Operation Temperature Range
- Humidity
- Storage Temperature Range
- Encapsulation
- Battery Type
- Battery Working Time
- Interface
- Accessories
i-384
<660g
244x100x104mm
-10°C~50°C
≤95%
-40°C~70°C
IP54
Rechargeable Lithium Battery
4 Hours
Type-C
Optional Battery, charger, data cable, high-strength shock
resistant case
