The new member of the Phantom family. Same specs (except battery) as the Phantom Expert but now with ATEX Certification (Ex ic IIC T6 Gc X & Ex ic III Dc X) for gas and dust environments! Phantom ATEX (EPH-ATX15 & ATX16) is a Triaxial Wireless Vibration Sensor able to send 3 simultaneous FFT and Time waveform recordings at once. Also, our Wireless Vibration Sensor wake up on high vibration levels in order to send data and alarms. As an additional value, our Wireless Vibration Sensor have a built-in integrator, as a result, it can internally calculate velocity parameters for alarms. This way, RMS values can be sent as well with a selectable periodicity.

The newest Wireless Vibration Sensor of the Phantom Family. Many of the same characteristics as the other vibration Phantom but smaller!. Phantom Gen 2 (EPH-V17 & V18) records vibration FFT from 3 axes simultaneously X, Y and Z up to 4 times per day. In addition, it includes a battery that can last to measure up to 12,000 recordings that can be changed at the end of its useful life.

EPH-V12 is a Wireless Biaxial Accelerometer. This sensor incorporates 2 standard ultra-low noise ICP accelerometers. Being able to send 2 simultaneous FFT and Time waveform recordings for bi-axis at once. Also, our wireless accelerometer can wake up on high vibration levels to send data and alarms. This Biaxial Wireless Vibration Sensor was designed for low speed machinery. EPH-V12 have a built-in integrator so it can, internally, calculate velocity parameters for alarms. This way, RMS values can be sent as well with a selectable periodicity.

All in One Phantom Sensor – Vibration, Current and Temperature

Meet the new member of the Phantom family. Take 3 types of measurement parameters with only one module: Vibration, Current and Temperature. Our Phantom condition monitoring system will help you to predict machine failures and save huge amount of costs due to non-programmed down times in production.

Temperature Sensor – Thermocouple

The Phantom temperature contact sensor is designed for long term exposure to your machines and surfaces. Phantom temperature sensor can record accurately from -210ºC up to 1,800ºC. As every other phantom, it includes a battery with an estimated life of 2 to 5 years and can accept up to 4 channels of thermocouple inputs.Modbus is available in this sensor for Automation processes.

This Bluetooth Temperature sensor embeds an IR sensor and brings you the commodity of technology: no wires. The sensor can read temperature with a distance of 1 meter using a high-technology thermo receptor with an amazing accuracy. The battery lasts as long as any other Phantom sensor and can be easily replaced if needed.Additionally Modbus is available in this sensor for Automation processes.

This Bluetooth Speed sensor uses a Hall Effect switch and aneodymium magnet, all included in the kit. You can easily analyze the revolutions per minute of any rotor, turbine or vent with incredible precision. Modbus comunicación included for automation.

EPH-C30 is a 3 channel Bluetooth Current Sensor (Amperage) which uses a simple installation to easily monitor the electrical current of your machines and devices. From 1 to 500 AMP our sensors can measure with precision the power consumption of your electric devices. Each sensor includes 3 simultaneous channels to measure each phase. Modbus available for Automation or Scada systems.

Use it with Any Available Sensor in the Market !! – The general purpose wireless sensors are able to monitor virtually any type of signal and is compatible with other kind of sensors including: Displacement, speed, and proximity. All our General Purpose wireless sensors come with the capability to collect up to 2 channels. Modbus Available

EPH-G61 is a 4-20 mA sensors to Bluetooth converter. EPH-G61 features an upgraded version with 24 bits and 4-20 mA input interfaces. This means that you can use any other sensor that can provide a 4-20 signal to implement your data into an integrated wireless system. Modbus available.

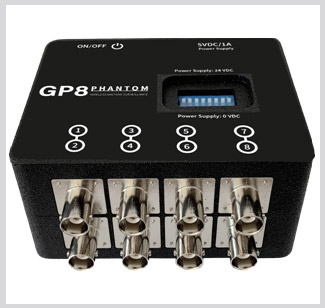

GP8, 8 Channel Vibration Module ( Takes input from AC vibrations Sensors) GP8 is the only 8-channel Universal Accelerometer to Wireless Phantom converter with Modbus comunication for additional standard applications. GP8 Can work either on battery or with 5 Volts power supply. Additionally, GP8 works with Phantom Standard Gateway receiver supporting more than 150 sensors at the same time.
